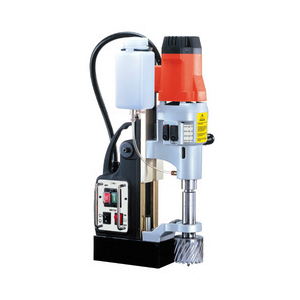

MÁY KHOAN TỪ MD750/4 AGP

Gọi: 08.38.214.062

MÁY KHOAN TỪ MD750/4 AGP ĐƯỢC SẢN XUẤT CHÍNH HÃNG TẠI ĐÀI LOAN

4 SPEED MAGNETIC DRILLING MACHINE

Four mechanical speeds with reversing switch for a large range of capabilities. Unique MT3 arbor with cutting fluid feed

Model	MD750/4
Power Input	110-120V:1700W, 220-240V:2000W
Voltage	110-120V~ 50-60Hz, 220-240V~ 50-60Hz
No / Full Load min-1	Speed 1	150 / 90
	Speed 2	200 / 120
	Speed 3	300 / 180
	Speed 4	380 / 230
Max. Capacity	Dia. X Depth of Cut	75 mm x 50 mm (3" x 2")
	Dia. X Depth of MT3 Twist Drill Bit	32 mm x 150 mm (1-1/4" x 4-7/8")
	Dia. X Depth of MT3 Chuck Adaptor With Twist Drill Bit	16 mm x 110 mm (5/8" x 4-5/16")
	Dia. X Depth of Taps	25.4 mm x 40 mm (1" x 1-9/16")
Magnetic Adhesion	32,000 N
Overload Protection	With
Net Weight	24.8kg ( 54.56 Lbs)

STANDARD ACCESSORIES:

*
Wrench M8
*
Hex. Key M2.5
*
Hex. Key M4
*
Chip Guard Kit
*
Coolant Tank Kit
*
Safety Chain
*
Drift

OPTIONAL ACCESSORIES:

*
MT3 Chuck Adaptor
*
5/8" (16mm) Chuck & Chuck Key
*
MT3 Tapping Adaptors
*
Tapping Attachments
*
Pipe Vise
*
Quick-Release Arbor
